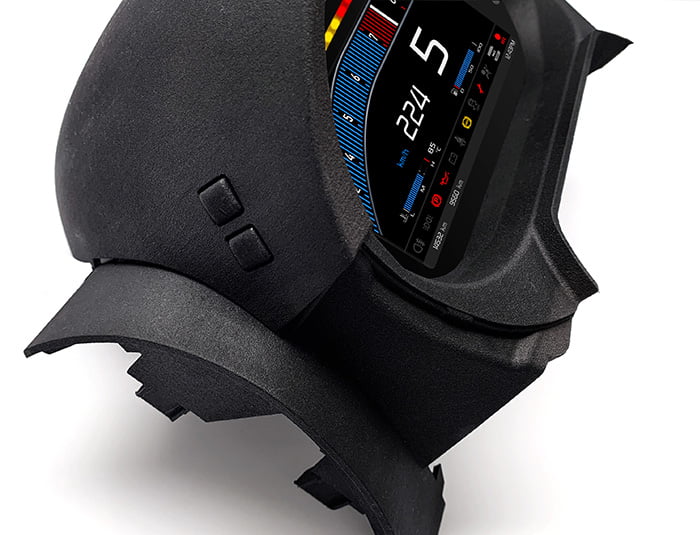

AIM MX2E Plug & Play Dash Logger kit (Airbag dash)

AIM Technologies is a well known and well respected name in top quality data logging and dash equipment.

They teamed up with Lotus to create a seamlessly integrated replacement dash unit, which isn’t just a digital dash, but a complete data logger!

Specifications:

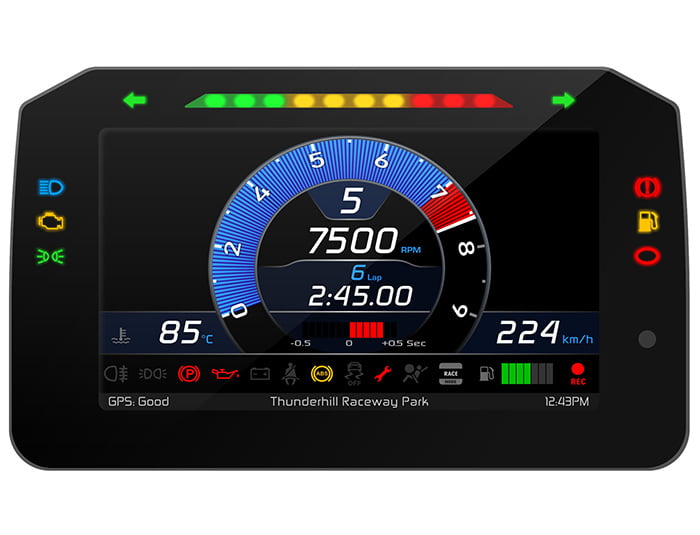

6 inch 800 x 400 pixel TFT with a 600:1 contrast ratio.
Ambient light sensor to automatically adjust the emitted light of the display
Four integrated buttons
Six status lights and a 10 LED shift light
Two CAN connections of which one is directly communicating the ECU
Interated Wi-Fi connection
4GB Internal memory
Weight: 400 gr
IP65 rating waterproof(1)

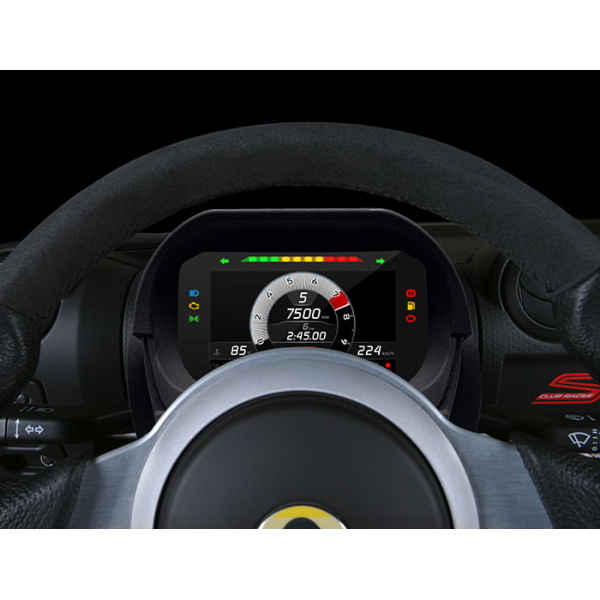

This data logger dash is fully compatible with the Elise and Exige models from 2011 onwards.
Data logging starts automatically using the integrated circuit layout database and can be downloaded after every session .
The MX2E can be expanded using a Channel Expansion unit and the Smartycam HD camera.

We can set the mileage of your vehicle for you. This needs to be done before shipping the dash to you.
If you want us to do so, please make a remark in your order with the mileage you want us to program in your MX2E!

The MX2E is compliant for road use because of the hard wired indicators, so you can use it on your road going Elise or Exige and turn into a high end data logger on track.

This dash is designed as a rugged automotive device which means it will work all conditions, hot or cold, low or high ambient light!

Let’s improve your race skills!
